    Vacuum Line Connections...

    We are finishing up an intake manifold R & R on an '02 SS.

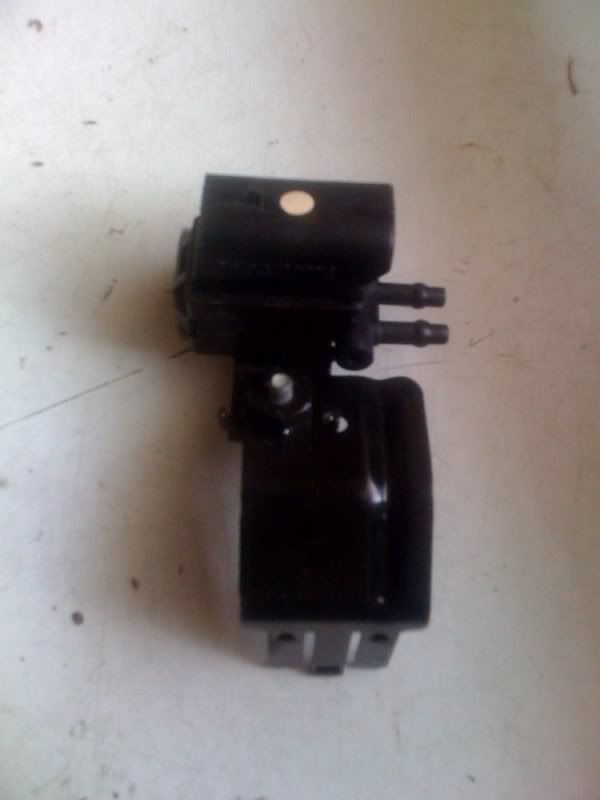

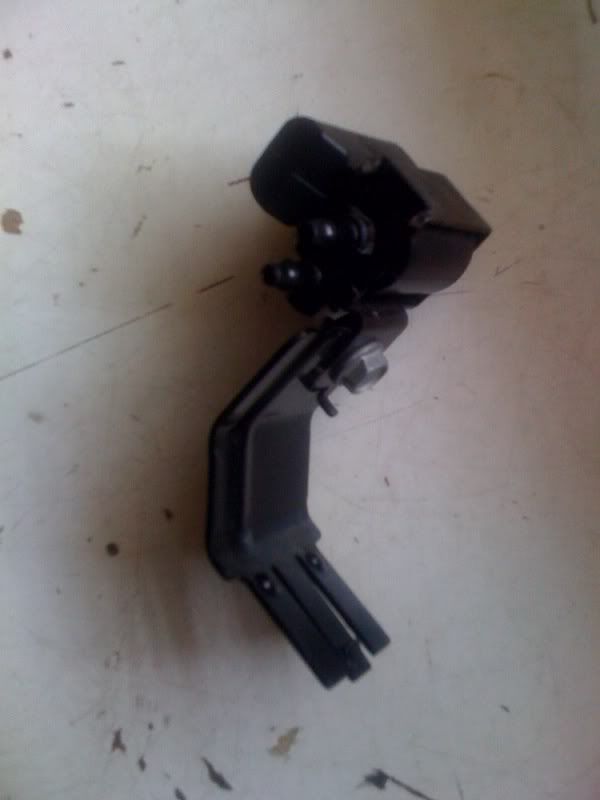

    There is a solenoid mounted to a bracket at the manifold at the driver's side rear corner.
    One vacuum port on the solenoid connects to the vacuum line from the rear of the intake manifold, and the other connects to the valve on the nearby AIR hose.
    Can someone please confirm which port is which?

    Thanks very much,
    Rick



    Reply With Quote Reply With Quote
  2. 10-12-2010, 07:09 AM #2
    MeGoFast
    MeGoFast is offline
    Member MeGoFast's Avatar
    Join Date
    Apr 2009
    Location
    Chitown Burbs
    Age
    60
    Posts
    157

    Black
    2013 Camaro 2SS/RS 1LE

    Top goes to intake, lower one goes to top of valve.
    Reply With Quote Reply With Quote
  3. 10-12-2010, 08:07 AM #3
    Rick@Metco
    Rick@Metco is offline
    Junior Member
    Join Date
    Jun 2008
    Location
    Anderson, SC
    Posts
    2
    Awesome...Thanks very much for the help!

    Reply With Quote Reply With Quote
  4. 10-12-2010, 04:15 PM #4
    MeGoFast
    MeGoFast is offline
    Member MeGoFast's Avatar
    Join Date
    Apr 2009
    Location
    Chitown Burbs
    Age
    60
    Posts
    157

    Black
    2013 Camaro 2SS/RS 1LE

    No Problem. Hopefully she fires up and runs with no problems.
