Thread: b&m cooler mounting
-
07-02-2014, 02:32 PM #1
b&m cooler mounting
Hey all I have a bm suprrcoolrr its 20500btu thatbim having trouble mounting is the ram air tunnel needed or could I remove it? It seems the ram air gets air to the intake just fine but I'm sure gm put this here for a reason... any input is greatly appreciated!
2002 WS6 A4 Slp lid,
longtube headers w/ high flow cats,
loudmouth exhaust, SLP y-pipe,
799 Heads, TSP Tv2, Dual valve springs, titanium retainers,
Chromoly pushrods, 12 Bolt rear 3.73 gears
torque thrust II black 17-9.5" front 17-10" rear
-
07-02-2014, 06:18 PM #2
-
07-03-2014, 05:32 AM #3
- Join Date
- Jun 2011
- Location
- Branchville, NJ
- Posts
- 3,111
Silver & Blue- 02 Camaro SS, 04 GTO
My ride is a 2002 Camaro SS SLP #3296 with 30k, LTH, 3" Y, CME, Frost tune, K&N, ported TB, Blackwing lid, Bellows, MSD, Denso Iridium, and 85mm MAF, Bilsteins, Eibach springs, SLP strut brace, Adj. Panhard, TA Girdle, UMI, Pro 5.0, Nitto NT555
My wife has a 2004 GTO with the rare SAP, 18" wheels, K&N Cold Air System, MSD, Ported TB, Frost tune, Denso Iridium, Flowmaster cat-back, 3200 Yank, 75k
-
07-03-2014, 07:43 AM #4
Mine is a bit bigger than what you have shown it seems there isn't enough clearance. There's an air duct that runs down the radiator to the bottom of my air box. I found a smaller cooler but its rated at half the btu of my current cooler.
-
07-03-2014, 02:47 PM #5

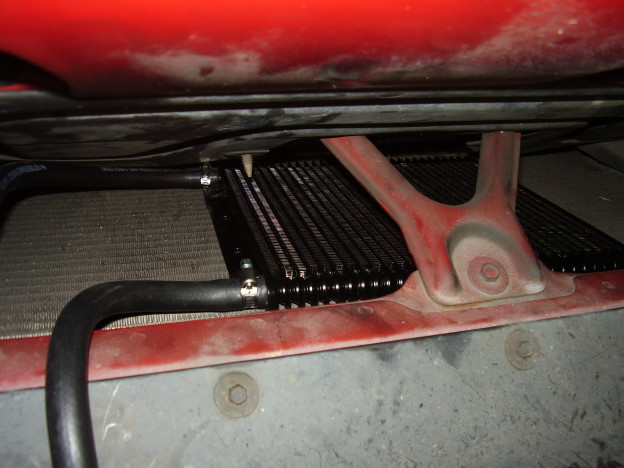

When mine was still an auto I mounted it in front of the a/c condenser as well without a problem. I used a Hayden 679 unit that is a plate style rated up to 30000 GVWR. I had also tapped the pan for a temp sender and with this cooler, even in summer traffic in MS the fluid temp never got higher than around 140.
Here is a link to the cooler on Amazon:
Amazon.com: Hayden Automotive 679 Rapid-Cool Plate and Fin Transmission Cooler: Automotive
2000 Trans Am T56 Swapped - GMPP "HOT" Cam | LS6 Intake | PnP TB | 25% UD Pulley | Founders adjustable LCA/PHB/TA | Norris Catch Can | TSP 1-7/8 SS LT | TSP True Duals with bullets | SLP Lid | UMI Shock tower brace | Torq Thrust M 17x9 275/40 front 17x10.5 315/35 rear - YouTube Videos - My Car Site
-
07-03-2014, 02:50 PM #6
^^ You turned the cooler so that the plates ran vertical -- that is the only way to run that style in our cars imo.
