I started my H/C/I swap today at 1pm. It took longer than I wanted to get the motor out...oh well. I go back tomorrow at 1 to put another 8 hours of work into it.
http://i65.photobucket.com/albums/h2...d/IMG_1782.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1783.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1784.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1785.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1787.jpg
Wow! Looks like its going well... I like the last shot with the wire harness all dangling from the engine bay. What H/C/I is going on?
Ported, Polished and Milled 5.3L HeadsQuote:
Originally Posted by pajeff02
Torquer V.2 Cam
Fast 90/90 Intake
There are some other goodies going on, but the list is too long.
where are u doing that al kinda looks like a school or something
Awesome! you're well on your way now Jeremy!
The military base here has a garage with almost everything you can think of...air tools, lifts, SAE Certified mechanics as employees if you need help, etc...costs $2.50 an hour to use a lift.Quote:
Originally Posted by blackbirdbrain89
Thanks :DQuote:
Originally Posted by TempleU_WS6
looks like a good start. keep us informed on the progress.
Couple of questions...
What shocks are those?
and
Are you going to take everything apart and paint it? lol
Man that's awesome. I would kill to have a place like that to work on my car.
looks great!!! how long did it take to get that far?
I want a lift!!!
what kind of headers you got?
sounds like a good deal of work let us know how it turn out
Here is my progress today...I spent a lot of time cleaning everything...makes it look like it's a new engine.Quote:
Originally Posted by jmdgto
I also got the Solid Motor Mounts on.
http://i65.photobucket.com/albums/h2...d/IMG_1800.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1801.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1802.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1803.jpg
Before the cleaning:
http://i65.photobucket.com/albums/h2...d/IMG_1792.jpg
KYB AGX with Eibach Prokit (stock springs on the rear).Quote:
Originally Posted by JoshieDoom
I'm painting the valve covers, and calipers tomorrow. I think I may spray a coat on the engine bay sometime before the engine goes in to cover where my wrenches have scratched the paint away.
7 hours...twice as long as I wanted. I also lost a K-Member bolt, I'm hoping it got kicked somewhere and it turns up soon.Quote:
Originally Posted by 02Sweet
Pacesetters...I don't have enough money at the moment to buy the LPPs I want. After I sell the stock heads and whatever else comes off the car, I'll be able to have some free cash to buy them.Quote:
Originally Posted by cobrakiller99
Want my Pacesetters? :D
Looks good so far. What method did you use to clean the top of the pistons without getting all that carbon wedged in between the cylinder and the piston? Or did you take it all apart?
Rotated the crank till two pistons where TDC and used a air powered gasket stripper on both the engine deck (where the head gasket material was) and the pistons (just rotated the crank a quarter turn till two more pistons were ready to be cleaned). I then took a shop rag and wiped all of the crud out of the cylinders when the pictons were at the bottom.Quote:
Originally Posted by RAWPWR3
Question: Is it ok to mix coolant? I have a little bit of the green stuff left the block that I can't get out. Would it be fine when I'm done and adding the orange dexcool?
Cool, nice work on that. I dont see why not, if the green coolant you had in there was okay to use with all brands i dont think youd have a problem. When i replaced the stats on my cars, i just flushed the old coolant out but im sure we didnt get it all out. And ive been running the green stuff since then with no problems. But since its out of the car, theres no better time to try and get it all out if its possible.Quote:
Originally Posted by ls1camino
Just hose the bastard out. Green with dexcool will sludge up the system.Quote:
Originally Posted by ls1camino
Pull the plugs out of the block -- 17mm allen head plug above and behind where alternator sits and 5/16" allen head (may actually be metric, but this is what fit best) just above where the starter sits. Then flush it out with a hose like Joshie D said.
Looks great all cleaned up -- keep posting pics.
I wish I had a lift to do something like this on

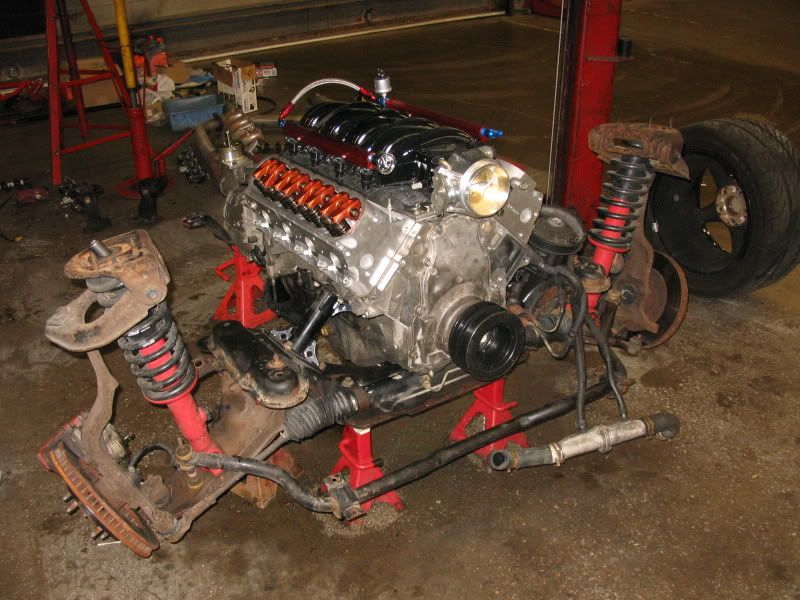

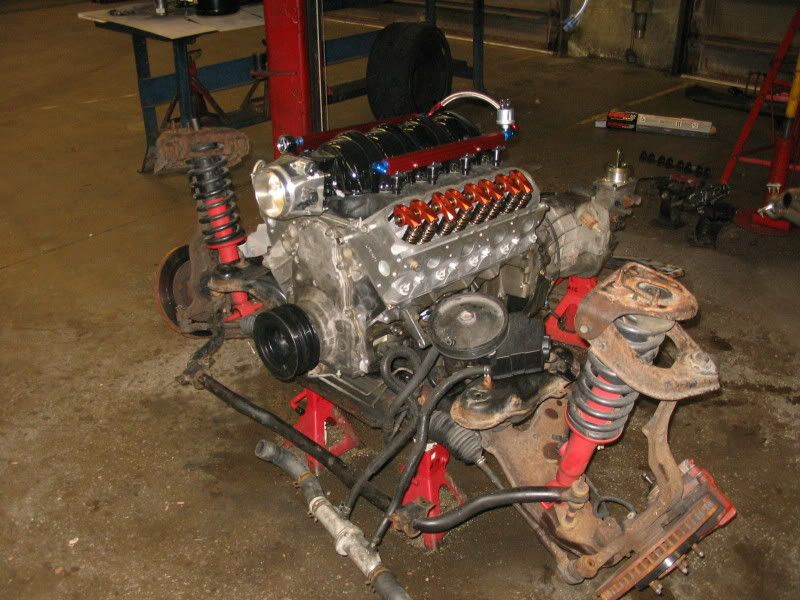

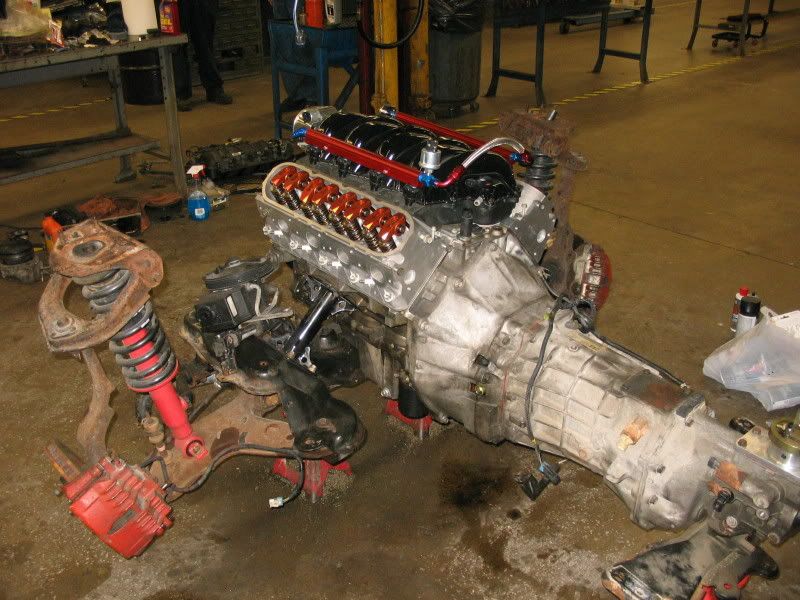

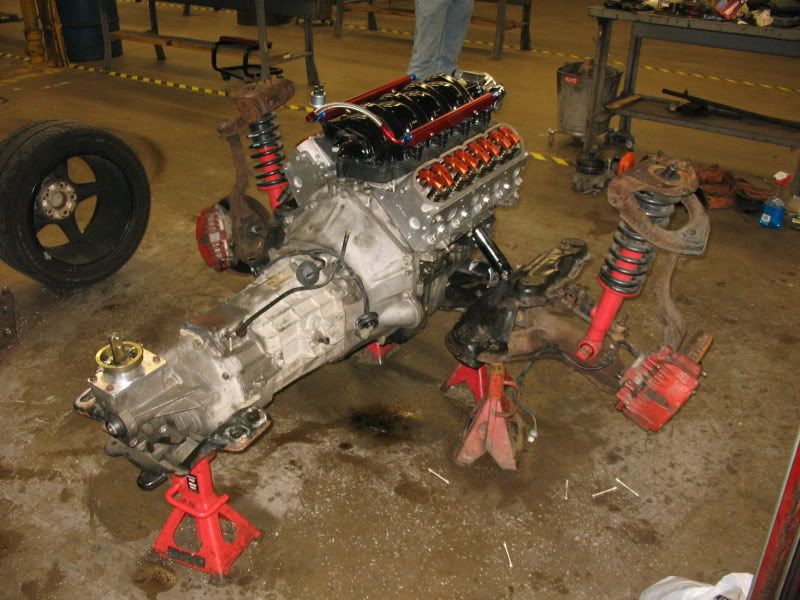

More pics...got the Camshaft, Double Timing Chain, Ported Oil Pump, Underdrive Pulley, LS7 Lifters, Heads, Hardened Pushrods, Roller Rocker Arms and LS6 Valley Cover on today (the Intake is just sitting on there, not bolted on).
http://i65.photobucket.com/albums/h2...d/IMG_1805.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1806.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1807.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1808.jpg
Got a few questions...
1. I thought I got all of the coolant out of the threads in the block where the head bolts go in, but apparently I didn't. When I was torqueing them down, some coolant misted out. After that the bolts went in fine (lock tite and all). Is this going to cause major problems down the road?
2. I was rushing when I was putting the heads on and when I first torqued the bolts to 22 ft/lbs, I did not go in the specified order on the driver's side head (I just went from right to left). I caught myself immediately and when I did the 90 degrees then an additional 90 degrees on the bolts, I did them in the right order. The passenger side head was done correctly from the start. Is the driver's side head going to have problems?
what is the benifit of solid motor mounts?
Headers/exhaust clearance issue fix, no rocking of the engine, less stress on the drivetrain when it loads/unloadsQuote:
Originally Posted by SHovV

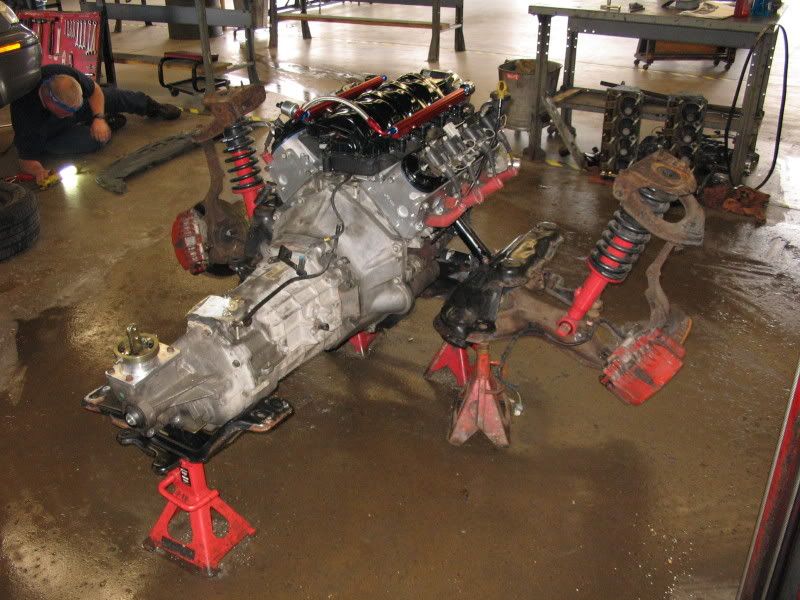

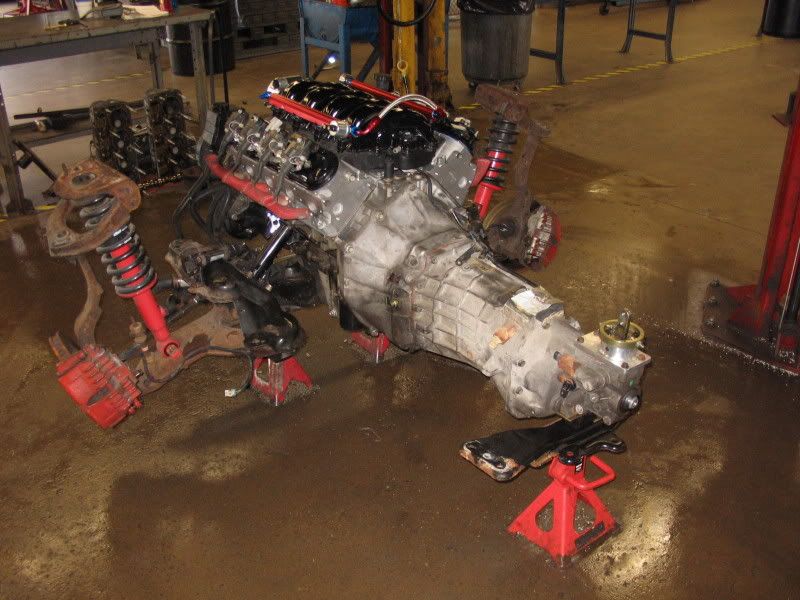

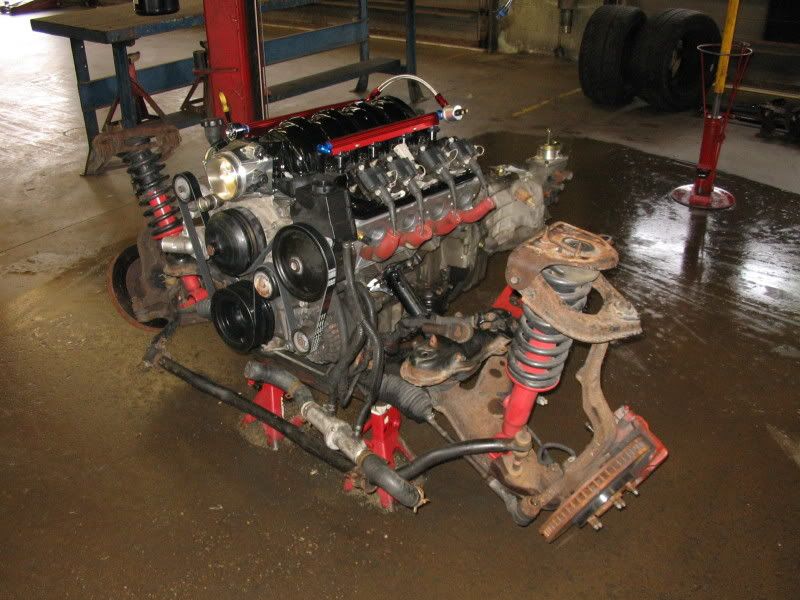

Day Four.
Everything is back together on the engine. I got the intake on, fuel rails assembled with thread sealant, valve covers on, coil packs on (I don't have time to paint them now, but I'll get them soon), and all of the accessories and drivebelt on.
Goes in the car tomorrow and hopefully will start up :xfingers:
http://i65.photobucket.com/albums/h2...d/IMG_1815.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1816.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1817.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1818.jpg
sweet dude thats cool
how much you want for the pacesetters?
Looks good! Its amazing how much quicker things get done when you have the right facilities and tools to do a job like this.
I'm thinking of going with a similar set up. Waiting to see your numbers. Nice work too.
Looking good man.

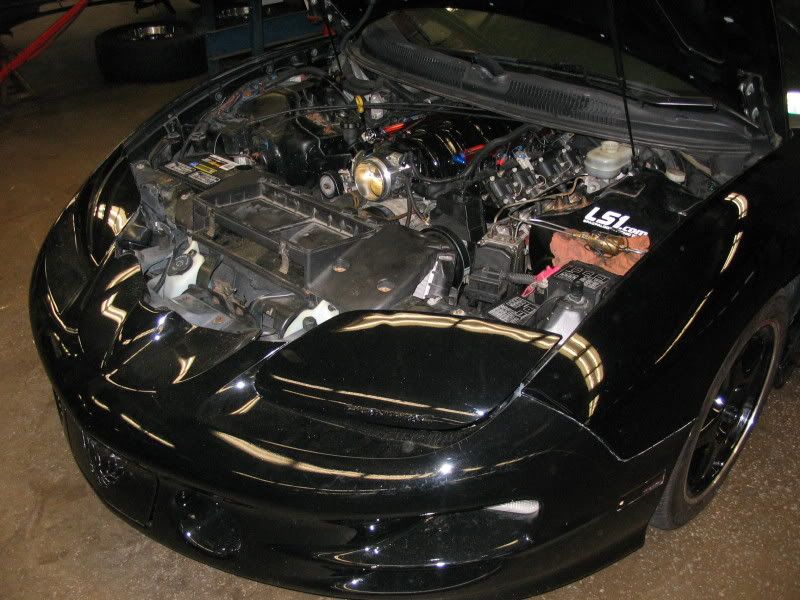

Day Five.

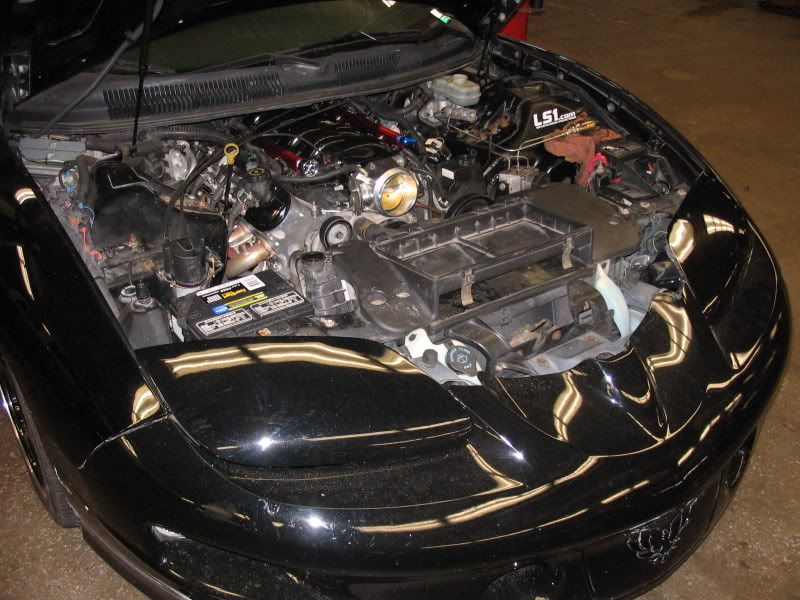

Got it in the car, with much adjusting of two jacks and the lift...it did not want to go back in. I still have some small things to do before I start her up. I have to hook up the grounds on the back on the driver's side head (forgot about them when I was reattaching the wires. I also have to fabricate some lines to hook up to my aftermarket rails. Lastly, I have to bleed the brakes and hook up my linelock (electrically).
I also ran into a problem. As you can see in the third picture, my throttle body is stuck open, maybe 25% or so. How would I go about fixing this? Will the TCS reset after it gets power back?
http://i65.photobucket.com/albums/h2...d/IMG_1823.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1824.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1825.jpg
We can't see that LS1.com sticker if we pass you. Unless you gonna turn :typer: and ride around with the hood off.
Looking good I did a very similar swap of this but I left my engine in the car. Same heads and cam but I did the 92 fast. Looks awesome good luck on start up :).
I don't want to put stickers on the outside of my car. That's my LS1.com Picnic sticker...I was planning on just putting the new ones below the old ones and just having a scrolling text type deal.Quote:
Originally Posted by doozjamann
What kind of numbers did you get? It's going to be at least a month before I get down to see Frost, and I'm eager to start bragging :lol:Quote:
Originally Posted by Ls1Bandit02ws6
Looks good man. Do you really enjoy the shocks you have(sorry for thread jack..pm me up )
where can i get a ls1.com sticker
Come to the LS1.com Picnic :DQuote:
Originally Posted by SHovV
it's only 1 day and 17 hours drive apparently for me:rubeyes:Quote:
Originally Posted by ls1camino
probably too far for me. but when/where
Quote:
Originally Posted by SHovV
And an even just as important question is what are the draw-backs of solid motor mounts installed on a daily driver ?
Man I hope your planning on true duals cause that Y-pipe connector sure doesnt look to efficent .Quote:
Originally Posted by ls1caminoI started my H/C/I swap today at 1pm. It took longer than I wanted to get the motor out...oh well. I go back tomorrow at 1 to put another 8 hours of work into it.
Completely worth it...I can't wait for this year...that is IF Spaz gets off his ass and plans it.Quote:
Originally Posted by c5z28
Philly area and whenever Spaz plans it...it was early August last year.Quote:
Originally Posted by SHovV
Rattles the hell out of you :lol:Quote:
Originally Posted by Z ROADSTER
Yeah, the y-pipe is already off and I'm going true duals, I just have to get my body mount torque arm on so I can see what I'm working with room-wise.Quote:
Originally Posted by Z ROADSTER
Im waiting on my HSW kit to get here and get it all installed to take it to get it tuned. Hopefully in two weeks ill have it dynod and tuned!! Cant wait :)
can't you do a h/c/i swap with the engine still in the car...just remove the radiator and all that shit and it should be enough room to do it
So what's the update?
Yes, but I didn't want to bend over the fenders and whatnot...I have a bad back and this just made life so much easier.Quote:
Originally Posted by 1998 T/A
Garage is closed Mondays and Tuesdays. I'll be back at it tomorrow.Quote:
Originally Posted by c5z28
Quote:
Originally Posted by Z ROADSTER
W/ solid motor mounts, there is "slightly" less parasitic loss to the rear wheels b/c the engine/tranny stays put. The only "drawback" is at idle, it may shake you a slight bit.
BTW...I've been in that very same Hobby Shop MANY times over the years. Nice work!!
dale
Shop was closed Monday and Tuesday.

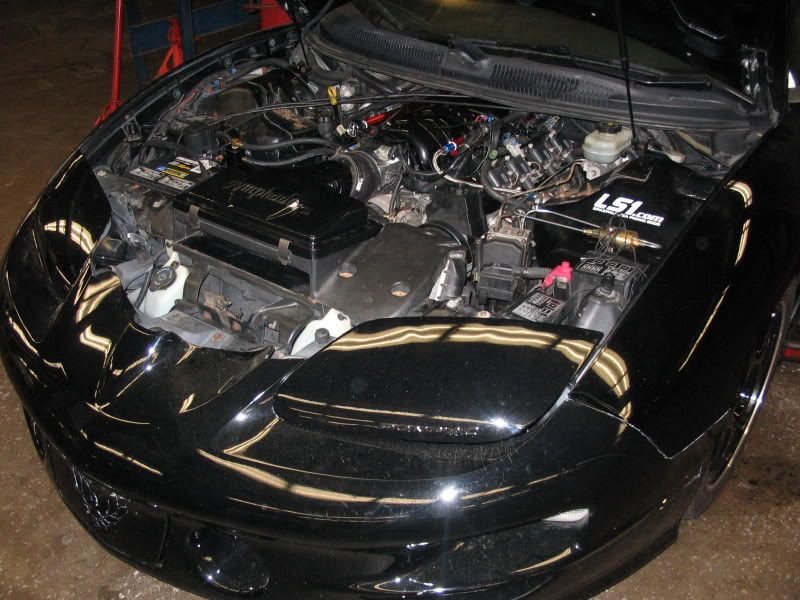

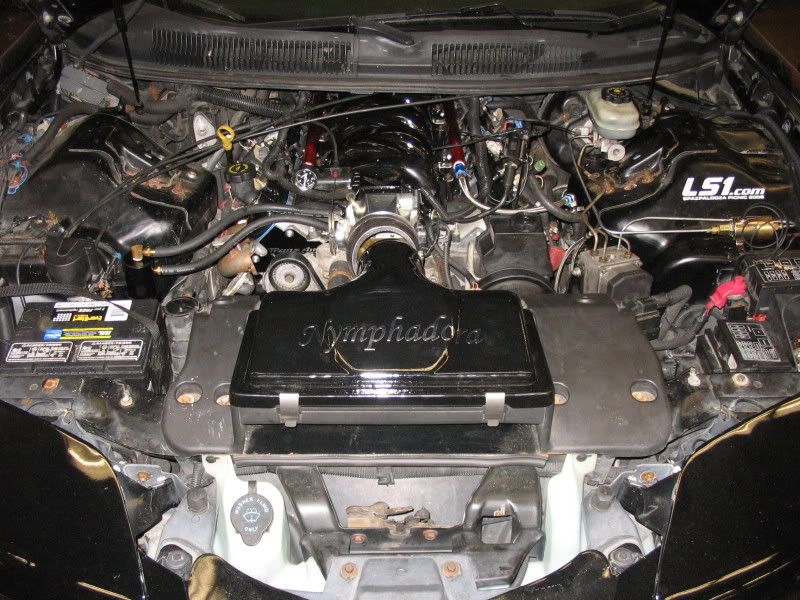

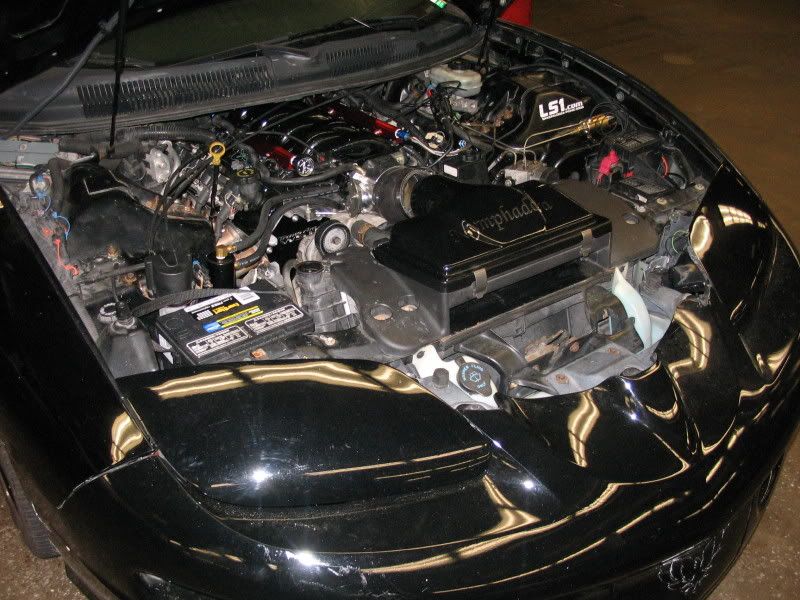

Day Six:
Got the little things hooked up...bled the brakes, fabricated the fuel lines, Catch Can installed, and got the Hot Wire for my Racetronix Fuel Pump rewired to the alternator.
I thought I was ready to start her up, and when the fuel pump came on and primed the system, it leaked out of two small places where the sealant wasn't in the threads on the rails, so I had to take them appart, put more sealant on and wait till tomorrow for it to dry :roll:
I also have to bleed the clutch and drill a new hole in the throttle body so it will close.
http://i65.photobucket.com/albums/h2...d/IMG_1826.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1828.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1829.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1827.jpg
is your line lock a kit? or did ya do it yourself?? mine looks almost identical and i did it all myself.... just curious???
Getting close now you can bring a camera for first start up.
You really are doing a good job. Thanks for the photo follow up. Let us know when you fire it up and make some numbers.
IT'S ALIVE!!!
I started her up today and let her warm up so I could fill her up with coolant. She sounds freaking amazing, even untuned. I can't wait to get the computer tuned and running right.
I still have to figure out how to get the torque arm on. The bolts are wedged on the rear and I can't get the piece on or off (misalligned). I also can't drive her because they're touching (DS Loop). I've got 8 hours tomorrow to figure it out :rolleyes:
I'll post the video up tonight when I get home from work.
I'm so happy :D
Awesome pics and explanation I wish I had the cash available to do it or the wife acceptance factor would be a better explanation lol way cool man good luck and keep posting it's very interesting anxious to see the #'s
Cool. You say the TQ arm and the DS saftey loop are touching? Is the suspension loaded? If not, try put the car down on all 4 wheels and check it again. Mine does the same thing, only when the car is up on 4 jack stands. Im ready to sell the damn DS SL.Quote:
Originally Posted by ls1camino
It's jammed weather it's loaded or not.Quote:
Originally Posted by Hi-Po
Thats a problem. :)Quote:
Originally Posted by ls1camino
Congrats on start up! It's so cool to hear them come alive again after a major project.
I just like my new sig.
Quote:
Originally Posted by Hi-Po
Hmmmm. Sounds sort of like a challenge... :ughlaugh:
how come i cant see my sig? :(Quote:
Originally Posted by Hi-Po
Nice job LS1C. Aren't you glad you lifted the body off the cradle to do all the work? In my issues of GMHTP almost all the tech articles have been done with the body off the cradle.
When you post, on the lower right corner of the post window there is a "show my signature" window. Check that and there ya go.Quote:
Originally Posted by SHovV
Startup Video :D
http://i65.photobucket.com/albums/h2...h_MVI_1830.jpg
The smoke is from me spilling oil on the headers.
Wow! That sounds totally bad ass! Nice work.
Nice work man.

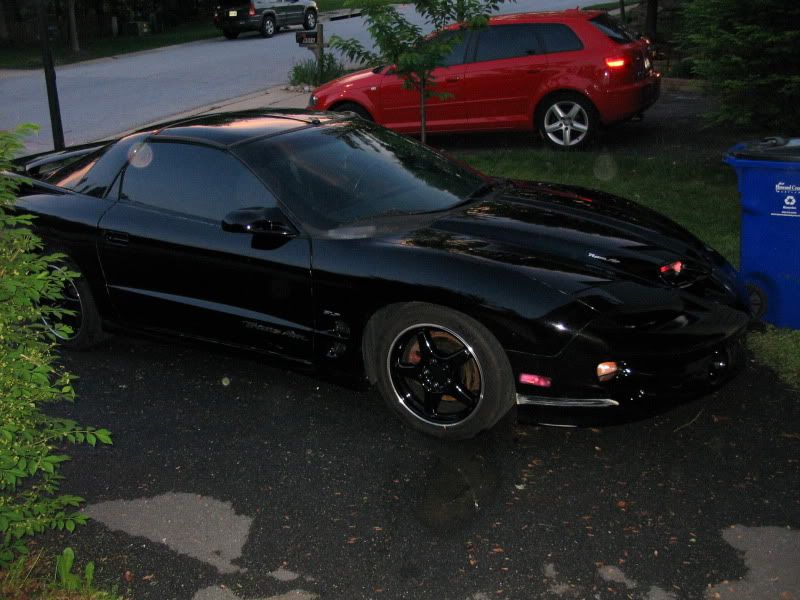

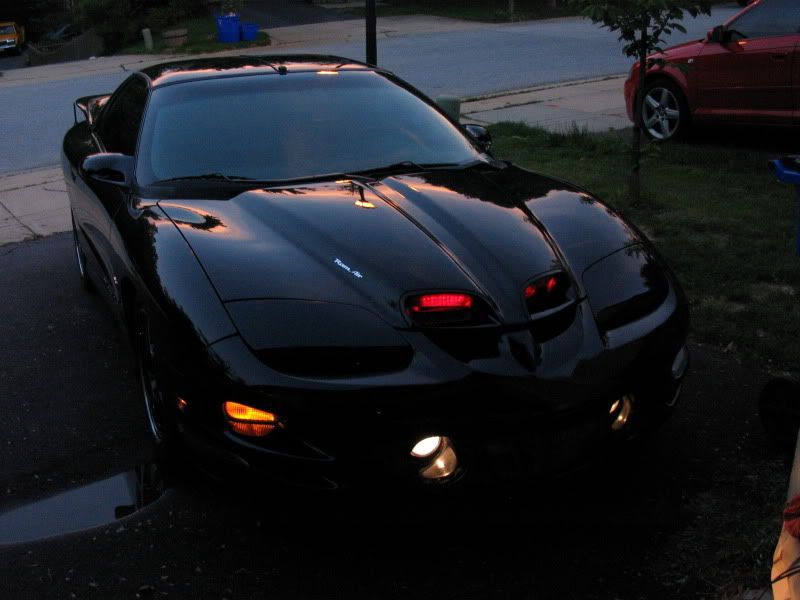

Drove her home today...drove like shit...back firing, flames shooting out the headers, stuttering, blah blah blah. I passed 3 cops in the 10 minute drive home...I'm very surprised I did not get pulled over. I really need to get the computer tuned...

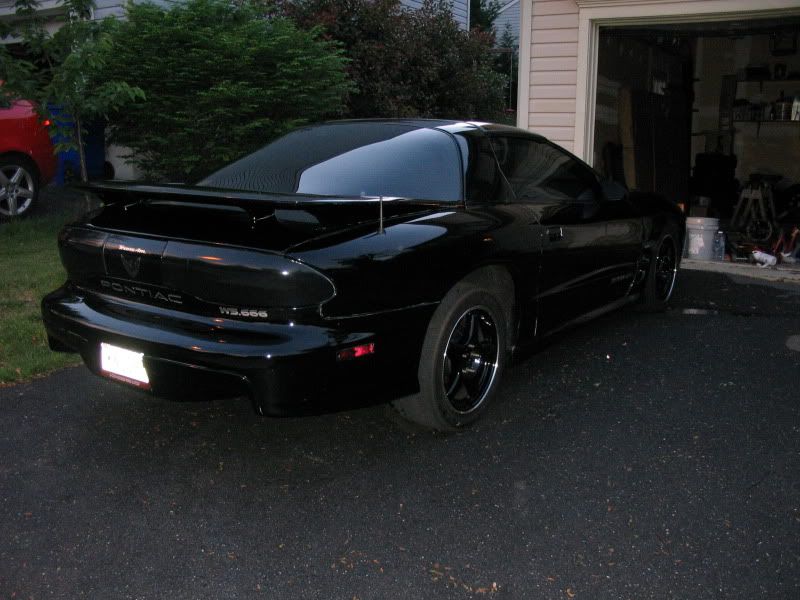

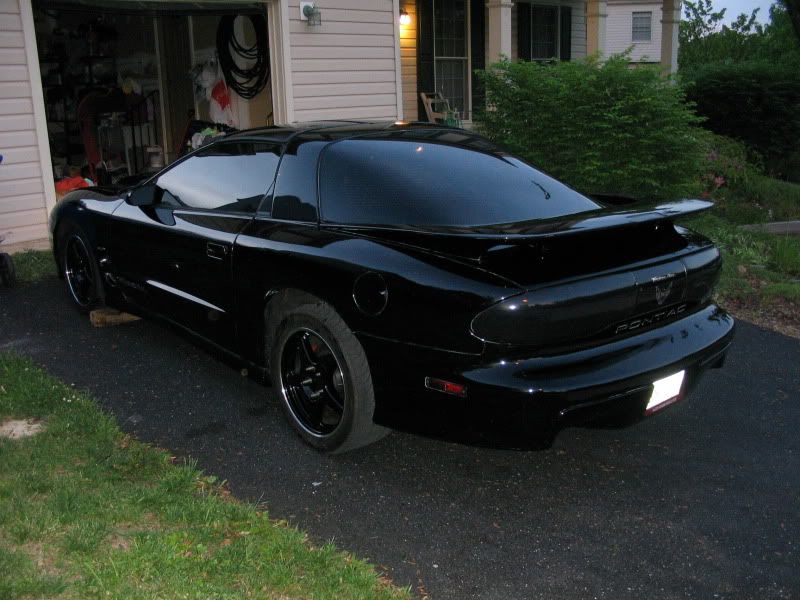

She still cleans up nicely though :D
http://i65.photobucket.com/albums/h2...a/IMG_1839.jpg
http://i65.photobucket.com/albums/h2...a/IMG_1841.jpg
http://i65.photobucket.com/albums/h2...a/IMG_1842.jpg
http://i65.photobucket.com/albums/h2...a/IMG_1848.jpg
Oh...I forgot...here is the Speed Density (MAF delete) mockup...4" Diameter x 6" Length Quadruple layered Silicone Tube :D
http://i65.photobucket.com/albums/h2...d/IMG_1837.jpg
http://i65.photobucket.com/albums/h2...d/IMG_1838.jpg
Now... once the tune is done are you going to actually drive it, or are there more projects waiting in the wings? Also, you ever catch any grief over the red lights in the hood? I assume you have them on a separate switch...
Yeah, no more projects...the next thing to replace is when the tranny blows and I have to replace it.Quote:
Originally Posted by pajeff02
What do you mean "catch grief"? You mean from cops or my friends? Honestly, no cops have ever said anything and my friends think it looks cool :lol: And, yes, it is on a separate switch.
Why is there a wood block behind the driver side front tire? Bad parking brake? :think:
I don't have a e-brake until I weld the bracket from my 10-bolt to my 9"...it's on the list of things to do.Quote:
Originally Posted by cammed goat
thats a nice ride, sounds mean lol.
Sorry for stupid question but why delete the maf?
Lookin good. Was just thinking after I looked over your pictures again... after the wood block comment.
My buddy always paints the inner fender walls when he does a full detail on my family's/friends car. With your car being ALL black. I think it would look great. At first I thought it would look great lowered. Then I realized it was just the fender walls. Just something to think about, me????.... Im too lazy and just trying to get my car back on the road. Ill never do it. :)
Quote:
Originally Posted by ls1caminoOh...I forgot...here is the Speed Density (MAF delete) mockup...4" Diameter x 6" Length Quadruple layered Silicone Tube :D
how can you delete that stuff and expect it to run good?
Quote:
Originally Posted by Th3unwant3d1
Speed density tuneQuote:
Originally Posted by gokillyourself
I'll watch for this thing at Capitol.
Hmm...I never thought about that...I'll look into it.Quote:
Originally Posted by Hi-Po
Also, my car is lowered, but only the front, the back is sitting on stock springs...gives it that old muscle car look that I like.
Quote:
Originally Posted by Th3unwant3d1
Like Y2K said, it's a Speed Density Tune. The car will be tuned to run off the MAP (Manifold Absolute Pressure) Sensor instead of the MAF (Mass Air Flow) Sensor. Increases throttle response, among other things.Quote:
Originally Posted by gokillyourself
hey ls1camino! god i hate you. lol. hey, i showed my wife your pics. she said that i could do all that on mine. then she said "Sign these divorce papers"! lmao!!
it looks awsome dude
Dont tell her. She wont pop the hood...Quote:
Originally Posted by cowstandmoto
Why do you think I did this before I got married to my fiance :DQuote:
Originally Posted by cowstandmoto
You lucky bastard! It's $5.50 an hour here(NAS Whidbey Island, Oak Harbor Washington.Quote:
Originally Posted by ls1camino
Where are you stationed?
I'm not in the military, I'm a fed. govt. employee. The base is Fort Meade, Maryland.Quote:
Originally Posted by blkSS98
cause your a damn smart man. my wife says no more upgrades till its paid off in a few years, and i wish i went on a shopping spree before she had a joint account with me. she wouldn't notice anything new on the ta, but that bank account tells on me everytime :hide:Quote:
Originally Posted by ls1camino
by the way, great job ls1camino
joint account? F that! F getting married at 21 also.Quote:
Originally Posted by BirdCountry02
I apologize if you felt offended.Quote:
Originally Posted by ls1camino
Still must be awesome being a govt. employee.
Thanks on both :)Quote:
Originally Posted by BirdCountry02
Yeah, we're not getting joint accounts either.Quote:
Originally Posted by Hi-Po
I'm 22 :p
No offense taken, I just don't want to be mistaken for a military member, I'm not worthy of that honor.Quote:
Originally Posted by blkSS98
